• MicroLogix 1762

    MicroLogix 1762

    These modules maximize flexibility of the I/O count and type. The modular, rackless design enhances cost savings and reduces replacement parts inventory. Modules can be either DIN Rail or panel mounted.

    Read more
  • MicroLogix 1763

    MicroLogix 1763

    he Allen-Bradley 1763-L16BBB is a MicroLogix 1100 Controller. This controller is powered by an external supply voltage of 24VDC with built-in Twelve (12) 24VDC discrete inputs, Two (2) 0-10 VDC analog inputs, Two (2) Relay Outputs, and Four (4) FET Outputs. This controller has a built-in RS232 and Ethernet communication interfaces.

    Read more
  • MicroLogix 1764

    MicroLogix 1764

    The 1764-24BWA is a MicroLogix 1500 base unit that belongs to the Bulletin 1764 product family. It has a line power voltage requirement of 85-265 VAC, integrated Eight (8) 24VDC sink/source discrete inputs, Four (4) High-Speed inputs and Twelve (12) Relay Outputs. It has integrated RS232 communication ports for device communication.

    Read more
  • MicroLogix 1766

    MicroLogix 1766

    MicroLogix 1400. Controller. 20K user memory. Input 20 x 110V AC. Output 12 x relay. Communications 2 x RS-232, EtherNet/IP. Supply 85…264V AC

    Read more

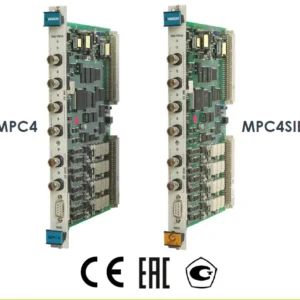

  • MPC4

    MPC4

    The MPC4 machinery protection card is the central element in the series machinery protection system (MPS). This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.

    The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multichannel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.

    Read more

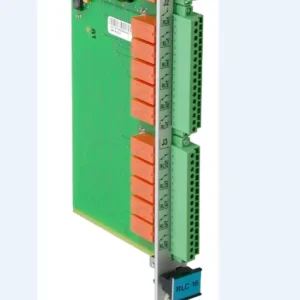

  • RLC16

    RLC16

    • Relay card with screw-terminal connectors

    • 16 relays with change-over contacts

    • Relay driver inverter logic (jumper selectable)

    • Low contact resistance

    • Low capacitance

    • High through power

    • Live insertion and removal of cards (hot-swappable)

    • Conforms to EC standards for EMC

    Read more

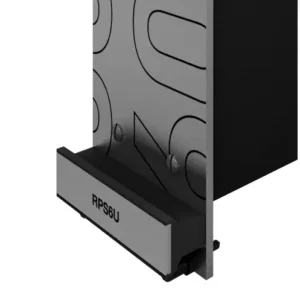

  • RPS6U

    RPS6U

    The RPS6U rack power supplies are designed for use in the series of machinery protection systems and condition and performance monitoring systems.

    A RPS6U rack power supply is installed in the front of a ABE04x system rack (19″ system racks with a standard height of 6U) and connects via two high-current connectors to the bus of the rack’s backplane. The RPS6U power supply provides +5 VDC and ±12 VDC to the rack itself and all installed modules (cards) in the rack via the rack’s backplane.

    Either one or two RPS6U rack power supplies can be installed in a ABE04x system rack. A rack with one RPS6U power supply (330 W version) supports the power requirements for a full rack of modules (cards) in applications with operating temperatures up to 50°C (122°F).

    Read more
  • SLC500: 1747/1746 series

    SLC500: 1747/1746 series

    SLC 500 System: The SLC 500 is a popular PLC platform known for its affordability, user-friendliness, and reliability. It’s well-suited for various industrial automation applications that don’t require extremely high processing power or complex control logic.

    Read more
  • TQ401

    TQ401

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 mm measurement range (Ø5 mm sensor)
    • −40 to 180 °C operating temperature, IP68 protection rating
    • 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable.
    • Certified for use in potentially explosive atmospheres
    Read more
  • TQ412

    TQ412

    The transducer body is available only with metric thread. The TQ432 version is intended for reversemount applications. Both the TQ422 and the TQ432 have an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

    The IQS450 signal conditioner contains a highfrequency modulator/demodulator that supplies a driving signal to the transducer. This generates the necessary electromagnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

    Read more
  • TQ422

    TQ422

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø12.7 mm sensor)
    • −25 to 140 °C operating temperature, IP68 protection rating, 100 bar pressure rating
    • 1.0, 5.0 or 10.0 m integral coaxial cable
    • Certified for use in potentially explosive atmospheres
    Read more

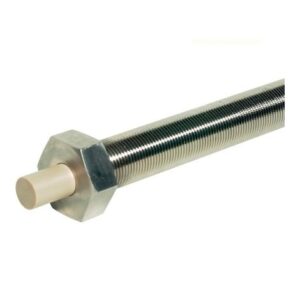

  • TQ432

    TQ432

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø12.7 mm sensor)
    • −25 to 140 °C operating temperature, IP68 protection rating, 100 bar pressure rating
    • 1.0, 5.0 or 10.0 m integral coaxial cable
    • Certified for use in potentially explosive atmospheres
    Read more
