• TQ902

    TQ902

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø8.2 mm sensor)
    • −40 to 180 °C operating temperature, IP68 protection rating
    • 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
    • Versions certified for use in potentially explosive atmospheres
    • Conforms to API 670 5th edition
    Read more
  • TQ912

    TQ912

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø8.2 mm sensor)
    • −40 to 180 °C operating temperature, IP68 protection rating
    • 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable.
    • Versions certified for use in potentially explosive atmospheres
    • Conforms to API 670 5th edition
    Read more

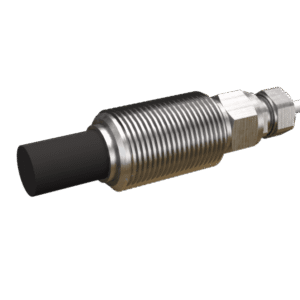

  • TQ922

    TQ922

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø12.7 mm sensor)
    • −25 to 140 °C operating temperature, IP68 protection rating, 100 bar pressure rating
    • 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
    • Versions certified for use in potentially explosive atmospheres
    • Conforms to API 670 5th edition
    Read more

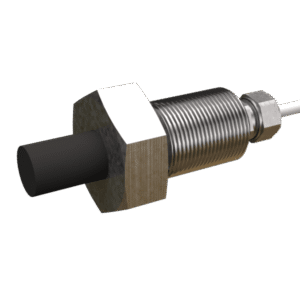

  • TQ932

    TQ932

    • Designed for the contactless measurement of relative vibration and axial displacement in turbines, compressors, pumps and fans
    • 2 or 4 mm measurement range (Ø12.7 mm sensor)
    • −25 to 140 °C operating temperature, IP68 protection rating, 100 bar pressure rating
    • 0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
    • Versions certified for use in potentially explosive atmospheres
    • Conforms to API 670 5th edition
    Read more

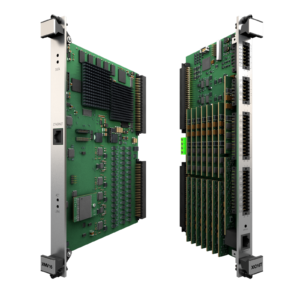

  • VM600 Series

    VM600 Series

    The VM600Mk2/VM600 XMV16 + XIO16T condition monitoring module for vibration provides 16 dynamic channels and 4 tachometer (speed) channels, all of which are independently configurable.

    Read more
  • XIO16

    XIO16

    The TQ422/TQ432, EA402 and IQS450 form a proximity measurement system. This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.

    TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbocompressors and pumps.

    Read more
  • XMV16

    XMV16

    16 dynamic vibration channels and 4 tachometer channels, all individually configurable Simultaneous data acquisition on all channels Up to 20 configurable processed outputs per channel High resolution FFT up to 3200 lines every 1 s Configurable asynchronous and synchronous sampling 24-bit data acquisition and high SNR data processing, with data quality checks 5 configurable severities per processed output and 8 detection levels with hysteresis and time delay Supports signal sharing in VM600 racks EMI protection on all inputs Live insertion and removal of cards (hot-swappable) Direct gigabit Ethernet communication Hardware is fully software configurable

    Read more
